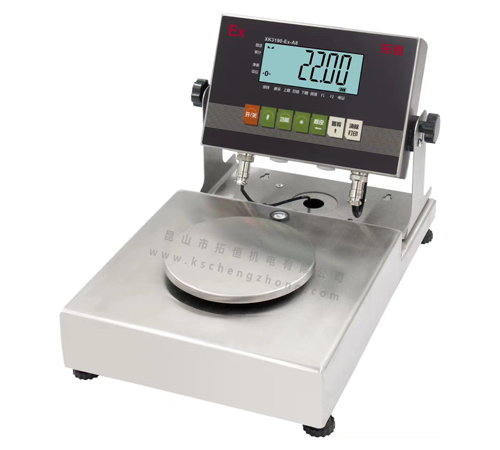

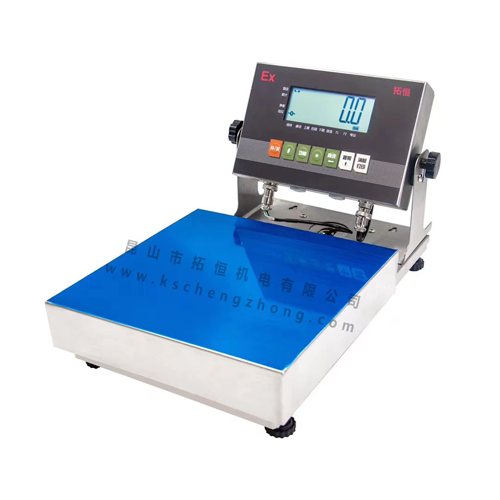

产品介绍：
当称量爆炸性货物或在防爆区域称重时，由拓恒公司提供的防爆型电子秤确保您安全、准确地称重；该系统具有准确度高，称量迅速，工作稳定可靠，维护简单等特点；广泛适用于石油化工、医药、军工等企业；
功能特点：
• 防爆标志：Ex ib ⅡC T4 Gb
• 显示：6位高亮LED显示，读数清晰，显示直观
• 置零范围：满量程
• 电源：防爆电池 + 专用充电器
• 材质：304不锈钢材质
• 过载能力：150%满量程
• 重复性：2d
• 线性：2d
• 防护等级：IP66以上
• 工作温度：-10℃ ~ 60℃
• 反应速度快，灵敏度高：(1) 从加载起到达稳定所需时间短；(2) 从货物移除起到达零点之速度快，
无残留；(3) 置零、去皮键启动反应速度快
• 独特的称重稳定处理程序，抗震动性更强
• 选配：备用防爆电池，防爆电源
• 通讯接口可选：蓝牙；RS232；RS485（ModBus RTU）；4-20mA模拟量；USB直读；4G；
ModBus-TCP；Profibus-DP；PROFINET；TCP/IP；WIFI；定量输出控制(I/O接口：四进四出)等
产品规格：
产品编号 | 最大称量 | 分度值 | 秤盘尺寸 | 重复性 | 线性 | 稳定时间 |
百分位系列 | ||||||
TH7362-110-EX | 110g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-210-EX | 210g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-310-EX | 310g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-510-EX | 510g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-610-EX | 610g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-810-EX | 810g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-1100-EX | 1100g | 0.01g | Φ130mm | 0.02g | 0.03g | ≤2S |
TH7362-2100-EX | 2100g | 0.02g | Φ130mm | 0.04g | 0.04g | ≤2S |
TH7362-3100A-EX | 3100g | 0.02g | Φ130mm | 0.04g | 0.04g | ≤2S |
TH7362-3100B-EX | 3100g | 0.05g | Φ130mm | 0.1g | 0.1g | ≤2S |
TH7362-5100A-EX | 5100g | 0.02g | Φ90mm | 0.04g | 0.04g | ≤2S |
TH7362-5100B-EX | 5100g | 0.05g | Φ130mm | 0.1g | 0.1g | ≤2S |
TH7362-6100A-EX | 6100g | 0.02g | Φ90mm | 0.04g | 0.04g | ≤2S |
TH7362-6100B-EX | 6100g | 0.05g | Φ130mm | 0.1g | 0.1g | ≤2S |
TH7362-8100A-EX | 8100g | 0.02g | Φ90mm | 0.04g | 0.04g | ≤2S |
TH7362-8100B-EX | 8100g | 0.05g | Φ130mm | 0.1g | 0.1g | ≤2S |
TH7362-9100A-EX | 9100g | 0.02g | Φ90mm | 0.04g | 0.04g | ≤2S |
TH7362-9100B-EX | 9100g | 0.05g | Φ130mm | 0.1g | 0.1g | ≤2S |
3kg系列 | ||||||
TH7360-2025-03A-EX | 3kg | 0.05g | 200ⅹ250mm | 0.1g | 0.1g | ≤2S |
TH7360-2025-03B-EX | 3kg | 0.1g | 200ⅹ250mm | 0.2g | 0.2g | ≤2S |
TH7360-2025-03C-EX | 3kg | 0.2g | 200ⅹ250mm | 0.4g | 0.4g | ≤2S |
TH7360-3040-03A-EX | 3kg | 0.2g | 300ⅹ400mm | 0.4g | 0.4g | ≤2S |
TH7360-3040-03B-EX | 3kg | 0.5g | 300ⅹ400mm | 1g | 1g | ≤2S |
TH7360-3040-03C-EX | 3kg | 1g | 300ⅹ400mm | 2g | 2g | ≤2S |
TH7360-4050-03A-EX | 3kg | 0.5g | 400ⅹ500mm | 1g | 1g | ≤2S |
TH7360-4050-03B-EX | 3kg | 1g | 400ⅹ500mm | 2g | 2g | ≤2S |
6kg系列 | ||||||
TH7360-2025-06A-EX | 6kg | 0.1g | 200ⅹ250mm | 0.2g | 0.2g | ≤2S |
TH7360-2025-06B-EX | 6kg | 0.2g | 200ⅹ250mm | 0.4g | 0.4g | ≤2S |
TH7360-2025-06C-EX | 6kg | 0.5g | 200ⅹ250mm | 1g | 1g | ≤2S |
TH7360-3040-06A-EX | 6kg | 0.2g | 300ⅹ400mm | 0.4g | 0.4g | ≤2S |
TH7360-3040-06B-EX | 6kg | 0.5g | 300ⅹ400mm | 1g | 1g | ≤2S |
TH7360-3040-06C-EX | 6kg | 1g | 300ⅹ400mm | 2g | 2g | ≤2S |
TH7360-4050-06A-EX | 6kg | 0.5g | 400ⅹ500mm | 1g | 1g | ≤2S |
TH7360-4050-06B-EX | 6kg | 1g | 400ⅹ500mm | 2g | 2g | ≤2S |
15kg系列 | ||||||
TH7360-2025-15A-EX | 15kg | 0.1g | 200ⅹ250mm | 0.2g | 0.2g | ≤2S |
TH7360-2025-15B-EX | 15kg | 0.2g | 200ⅹ250mm | 0.4g | 0.4g | ≤2S |
TH7360-2025-15C-EX | 15kg | 0.5g | 200ⅹ250mm | 1g | 1g | ≤2S |
TH7360-3040-15A-EX | 15kg | 0.5g | 300ⅹ400mm | 1g | 1g | ≤2S |
TH7360-3040-15B-EX | 15kg | 1g | 300ⅹ400mm | 2g | 2g | ≤2S |
TH7360-4050-15A-EX | 15kg | 0.5g | 400ⅹ500mm | 1g | 1g | ≤2S |
TH7360-4050-15B-EX | 15kg | 1g | 400ⅹ500mm | 2g | 2g | ≤2S |
30kg系列 | ||||||
TH7360-2025-30A-EX | 30kg | 0.1g | 200ⅹ250mm | 0.2g | 0.2g | ≤2S |
TH7360-2025-30B-EX | 30kg | 0.5g | 200ⅹ250mm | 1g | 1g | ≤2S |
TH7360-2025-30C-EX | 30kg | 1g | 200ⅹ250mm | 2g | 2g | ≤2S |
TH7360-3040-30A-EX | 30kg | 0.5g | 300ⅹ400mm | 1g | 1g | ≤2S |
TH7360-3040-30B-EX | 30kg | 1g | 300ⅹ400mm | 2g | 2g | ≤2S |
TH7360-3040-30C-EX | 30kg | 2g | 300ⅹ400mm | 4g | 4g | ≤2S |
TH7360-4050-30A-EX | 30kg | 0.5g | 400ⅹ500mm | 1g | 1g | ≤2S |
TH7360-4050-30B-EX | 30kg | 1g | 400ⅹ500mm | 2g | 2g | ≤2S |
TH7360-4050-30C-EX | 30kg | 2g | 400ⅹ500mm | 4g | 4g | ≤2S |
60kg系列 | ||||||
TH7360-3040-60A-EX | 60kg | 0.5g | 300ⅹ400mm | 1g | 1g | ≤2S |
TH7360-3040-60B-EX | 60kg | 1g | 300ⅹ400mm | 2g | 2g | ≤2S |
TH7360-3040-60C-EX | 60kg | 2g | 300ⅹ400mm | 4g | 4g | ≤2S |
TH7360-4050-60A-EX | 60kg | 1g | 400ⅹ500mm | 2g | 2g | ≤2S |
TH7360-4050-60B-EX | 60kg | 2g | 400ⅹ500mm | 4g | 4g | ≤2S |
TH7360-4050-60C-EX | 60kg | 5g | 400ⅹ500mm | 10g | 10g | ≤2S |
100kg系列 | ||||||
TH7360-3040-100A-EX | 100kg | 1g | 300ⅹ400mm | 2g | 2g | ≤2S |
TH7360-3040-100B-EX | 100kg | 2g | 300ⅹ400mm | 4g | 4g | ≤2S |
TH7360-3040-100C-EX | 100kg | 5g | 300ⅹ400mm | 10g | 10g | ≤2S |
TH7360-4050-100A-EX | 100kg | 1g | 400ⅹ500mm | 2g | 2g | ≤2S |
TH7360-4050-100B-EX | 100kg | 2g | 400ⅹ500mm | 4g | 4g | ≤2S |
TH7360-4050-100C-EX | 100kg | 5g | 400ⅹ500mm | 10g | 10g | ≤2S |
秤台材质：全304不锈钢 | ||||||
秤台尺寸可定制；称量可定制 | ||||||
